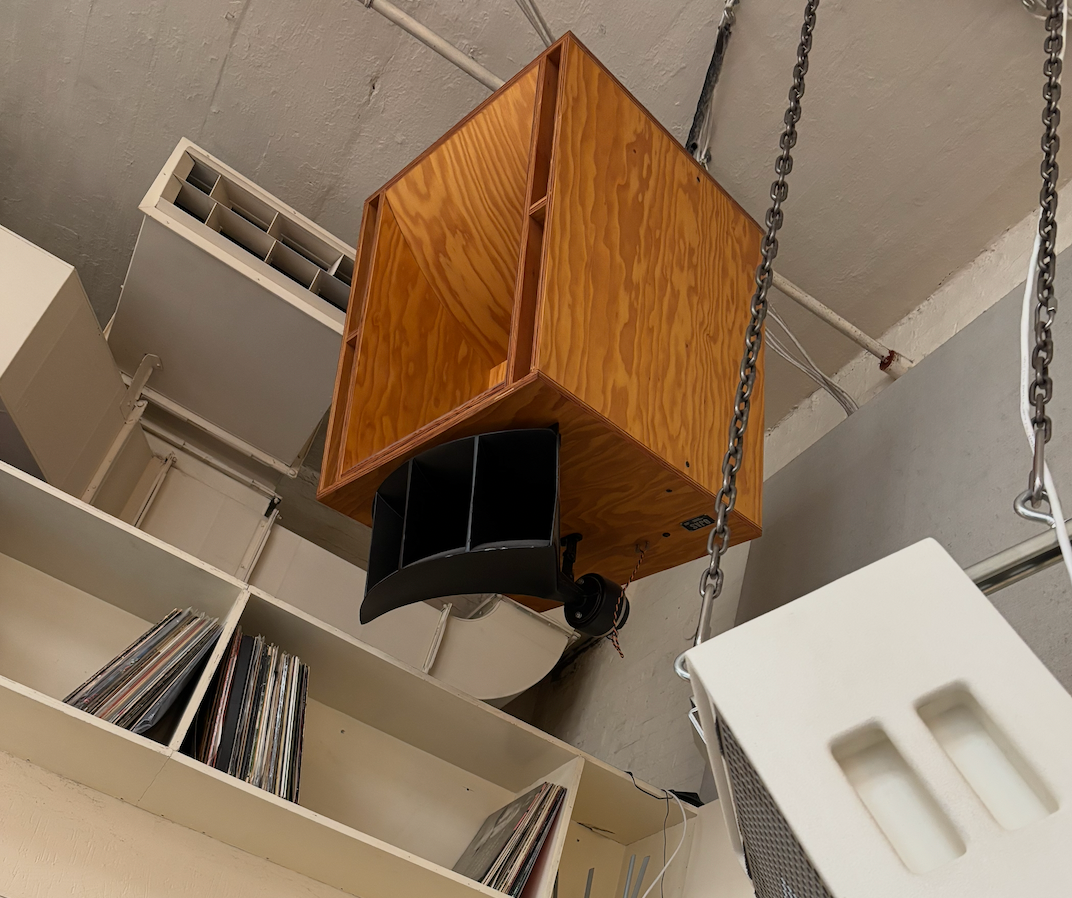

Ceiling Suspension for Speakers

Suspending speakers from a ceiling is a critical task that balances acoustic performance with structural safety. The primary goal is to achieve a uniform Sound Pressure Level (SPL) across the audience while minimizing unwanted reflections from walls and the ceiling.

Suspension Systems & Configuration

To ensure a uniform SPL, speakers should ideally be installed at a slight angle with two main options: three point hanging systems or 4 point hanging systems.

Three-Point Hanging System

This is the standard configuration for a slight tilt. It evenly distributes the weight across three distinct points to prevent cabinet warping and ensure a secure hang.

  • Front: Two "hang" suspensions (left and right).
  • Rear: One centered "pull-back" suspension to set the downward angle.



3 point speaker suspension system

2. Four-Point L-Track System

For larger cabinets or more complex aiming, an L-Track (Airport Track) system allows for a four-point suspension.

  • Front: Two "hang" suspensions (left and right).
  • Rear: Two "pull-back" suspensions (left and right) for enhanced lateral stability.

four point speaker suspension



Hardware Options

Choosing the right hardware is vital for both the integrity of the speaker cabinet and the ease of installation.

Hardware Type


Best Use Case

Key Benefits

Forged Shoulder Eyebolts

Permanent, fixed installations.

High strength; cost-effective for static hangs.

L-Track / Airport Track

12 inch L-Track Rails— 2 PACK | L Track Systems | Shipper's Supplies

Venues requiring frequent re-adjustment.

Quick-release "Tie Down Rings"; adjustable attachment points along the track.



Structural Attachment Methods

The method of attaching to the building depends entirely on the ceiling material.

Steel Beams: Beam Clamps are the preferred method for attaching to structural steel flanges. They must be load-rated and torqued to manufacturer specifications.



Concrete Slabs:

  • Adhesive (Epoxy) Anchors: Recommended for overhead use (e.g., Hilti HIT-RE 500 V3) because they are not sensitive to vibration.
  • Screw Anchors: Options like the Simpson Titen HD are popular because they are easy to inspect and can be removed.
  • Expansion (Wedge) Anchors: These must be ICC-approved for "cracked concrete" to meet code for overhead applications.



Critical Safety Standards

Rigging overhead equipment carries significant liability. Always adhere to these safety factors:

  • Design Factor: The suspension system must be capable of holding 5:1 to 10:1 of the speaker's actual weight.
  • Backing Plates: To prevent bolts from pulling through the speaker cabinet, a rigid backing plate (6061-T6 aluminum or steel) must be used inside the cabinet.
    • Thickness: At least 1/2 the diameter of the bolt.
    • Width: At least 5 times the diameter of the bolt.
  • Cabling: Use 7 x 19 aircraft cable. Ensure all wire rope ends are properly terminated using thimbles to form the eyes.

.
